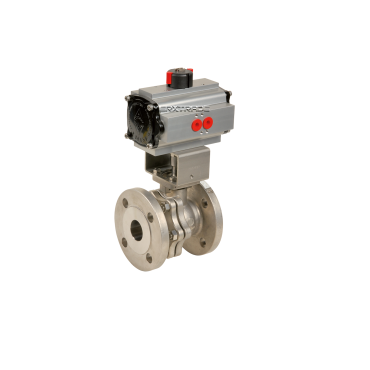

Ball valve 2-piece flanged pneumatic Actreg single acting stainless steel
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 2 piece body | Material body: | Stainless steel EN 1.4408 |
| Connection: | Flanged PN16/40 RF | Material disc: | St.St.ASTM A351 CF8M |
| Temperature: | -50°C / +230°C | Material seat: | PTFE filled with 25% glass |
| Pressure: | 40 bars up to DN50 >16 bars | Vacuum: | 10-² torr |
| Steam: | 12 bars maximum | Compressed air: | 8 bars maximum ( check data) |
| Ball: | Full bore | Brand valve: | ICP |
| Actuating: | Pneumatic single acting | Brand actuator | Actreg type ADA & ASR |
| Actuating: | Spring close (type ASR) | Material actuator: | Aluminium |
| Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air |
| Fire safe ISO 10497 : 2004 ( only the ball valve) |
| SKU | MXT-753ASR0000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | PTFE |
